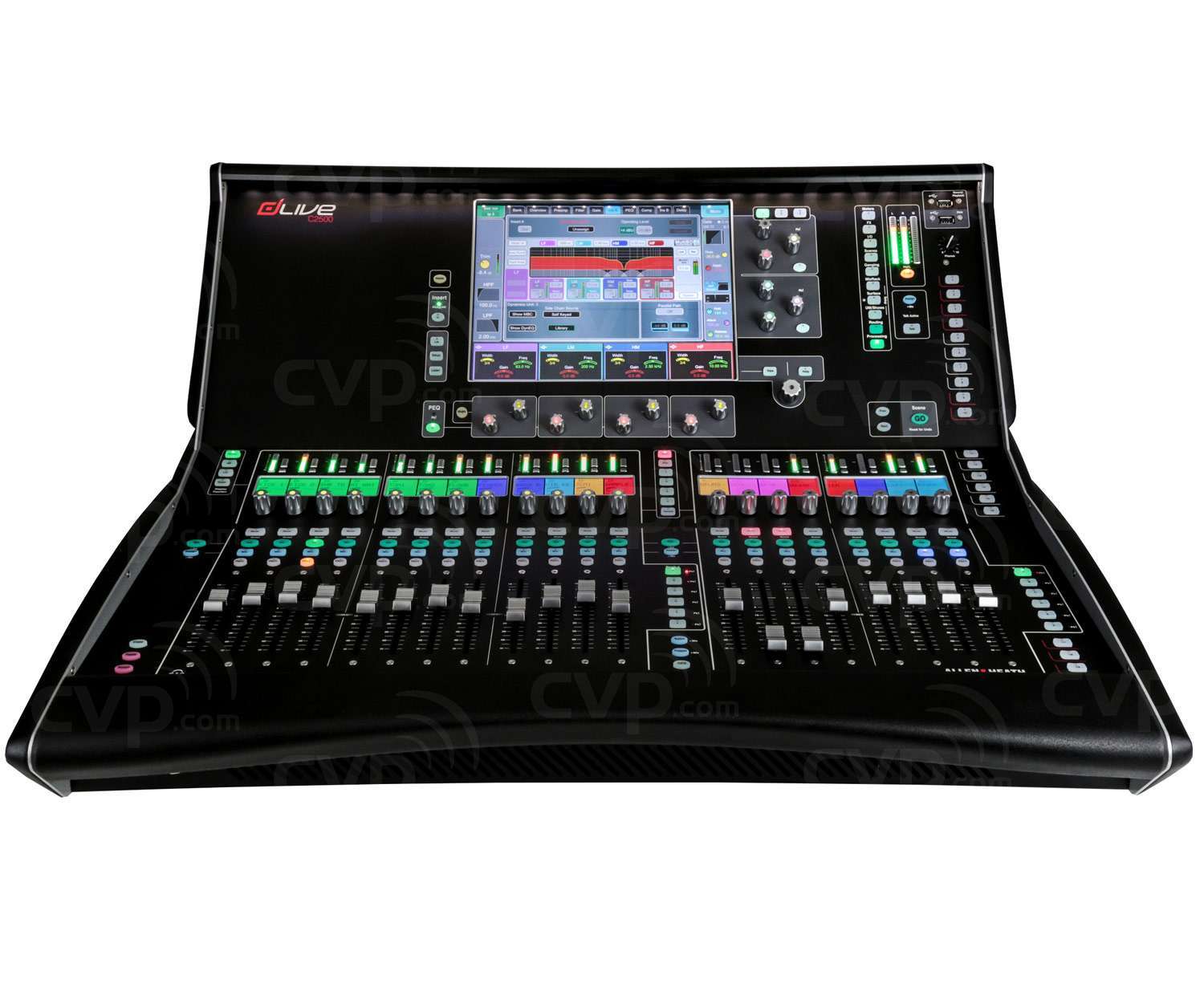

Allen & Heath DLIVE C2500 Mixing surface

The C2500 is a small-footprint yet powerful control Surface for the dLive MixRack. It features 20 faders over 6 layers, built-in audio I/O, an audio networking port, a 12? capacitive touchscreen and the innovative Harmony UI for the fastest workflow in the industry.

FEATURES

20 faders
Fully assignable layout – 120 fader strips
Harmony UI integrates screen and wrap-around controls
Single 12” capacitive touchscreen
Gesture control – pinch, swipe, drag ‘n drop
Dedicated multi-mode EQ view
Configurable widget areas for Scenes, meters, FX and more
3 pages of 6 assignable rotaries
19 assignable SoftKeys
Engineer’s Wedge and IEM fader strips
Comprehensive multipoint metering
Daylight visibility
USB stereo recording and playback
6 XLR mic/line in, 6 XLR line out
1 digital st AES3 in, 1 digital st AES3 out
Connection hub

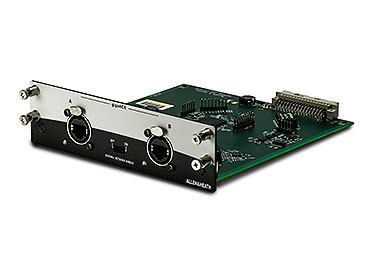

GigaACE gigabit link to MixRack
DX link for I/O expansion
I/O Port – 128 ch 96 kHz
2x Network ports
Wordclock BNC I/O
Video output
